233Pcs Deutsch Kit DT 2 Way Series Connector Plug Waterproof Auto Marine DT2 Pin

Descripion：
For Deutsch DT series connectors are perfect for your power application requirements. For Deutsch DT series offer proven reliability and rugged quality. DT series connectors accept size 16 contacts each with a 13-amp continuous capacity.
For Deutsch DT connectors stand up to harsh environments common in Industrial, Marine, Automotive, 4x4 and Heavy equipment applications.


Key Feature：
Accepts size 16 contacts
14-20 AWG cable
Operating temperature：-55C to +125C
Strong thermoplastic housing
Integrated latch for mating
Wedge locks to assure contacts aligned and retained
Silicone seals

Material Specification：
Grommet material: Silicone rubber
Receptacle seal: Silicone rubber
Housing: Thermoplastic
Insert retainer: Thermoplastic
Wedge locks: Thermoplastic

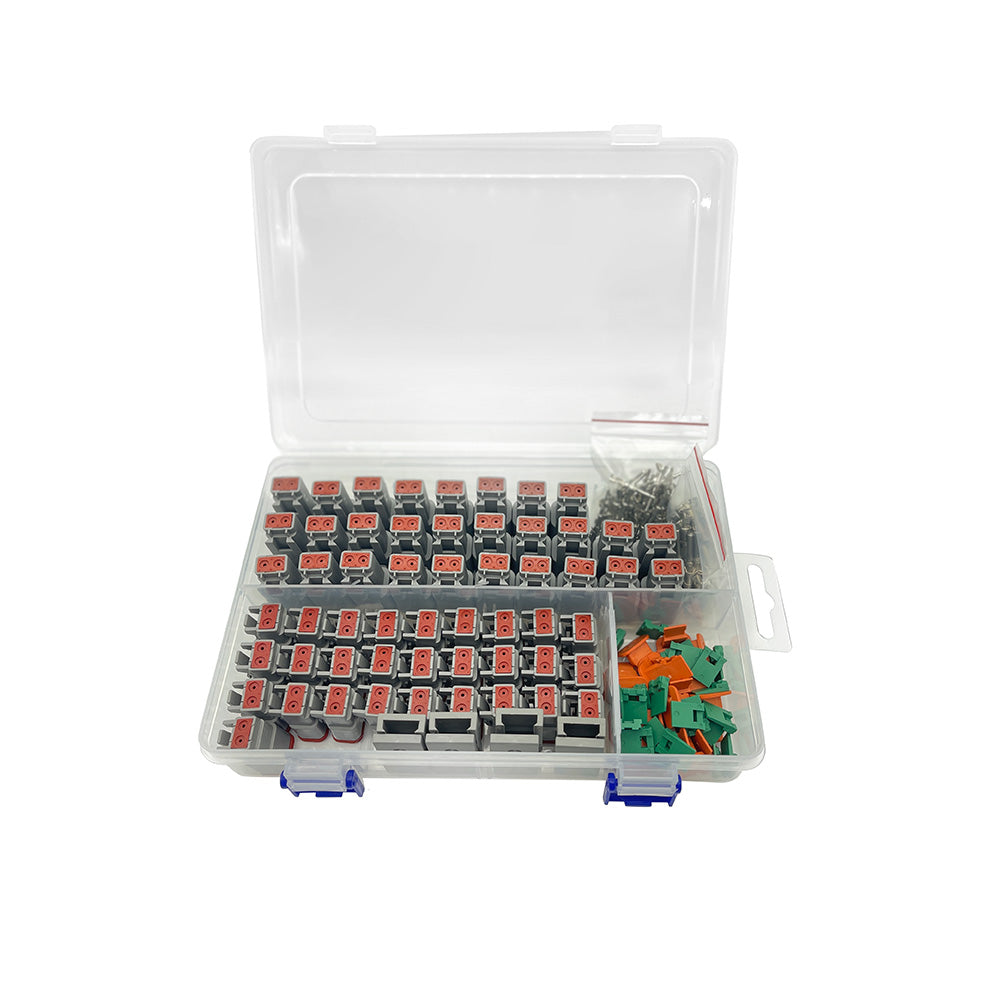

Package Including：

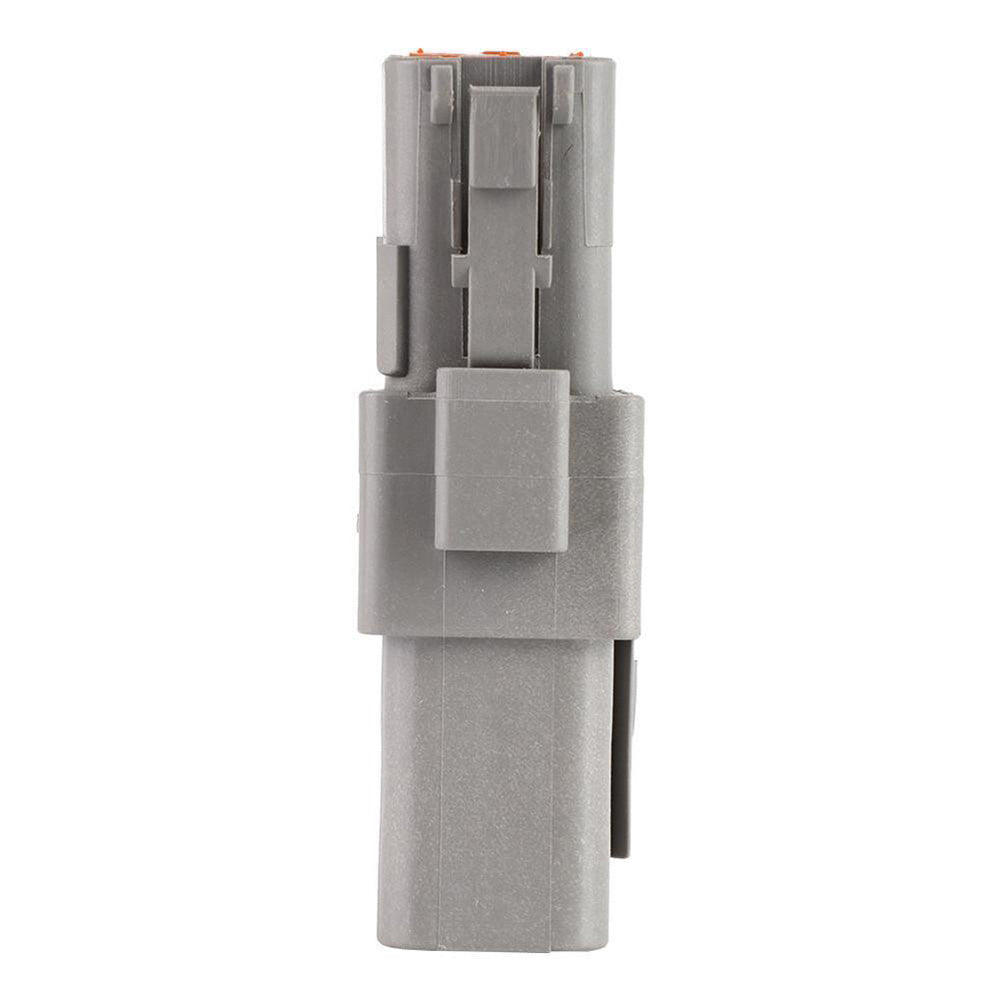

28 x DT 2-way Male Receptacle with wedge lock
28 x DT 2-way Female Receptacle with wedge lock

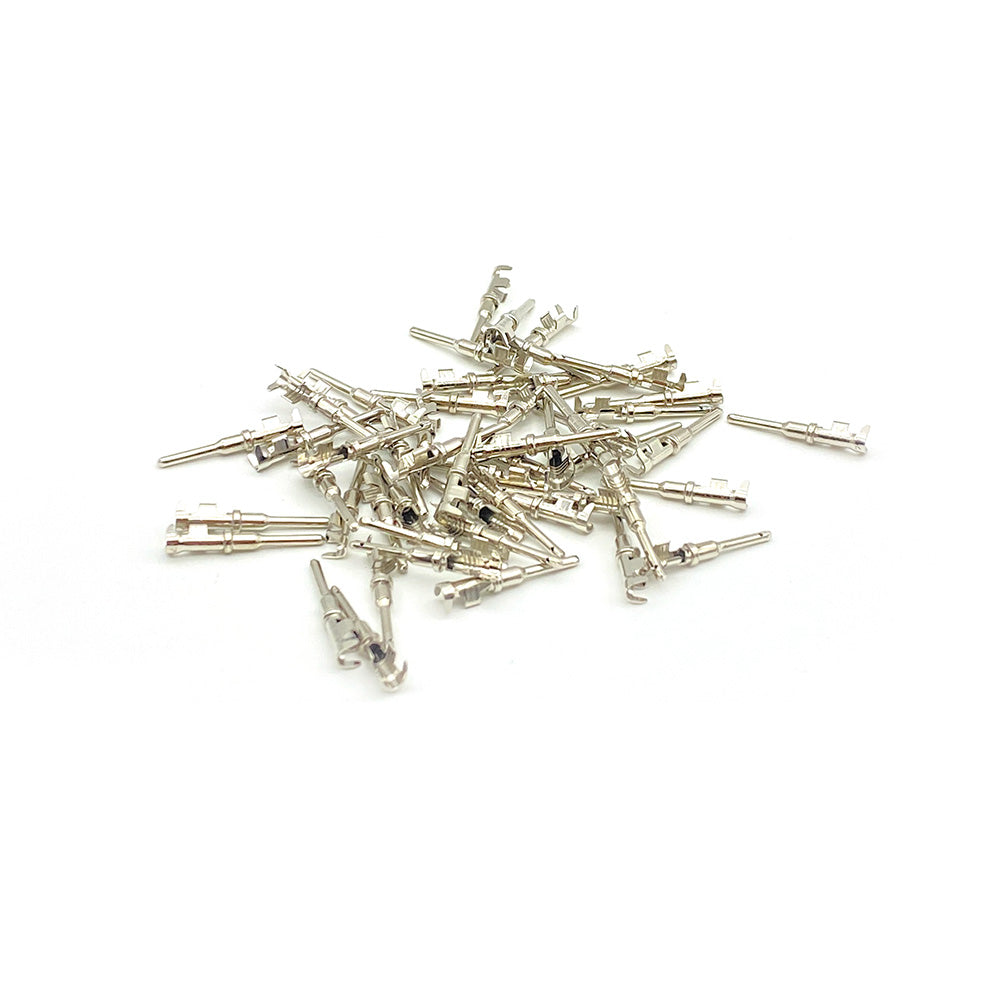

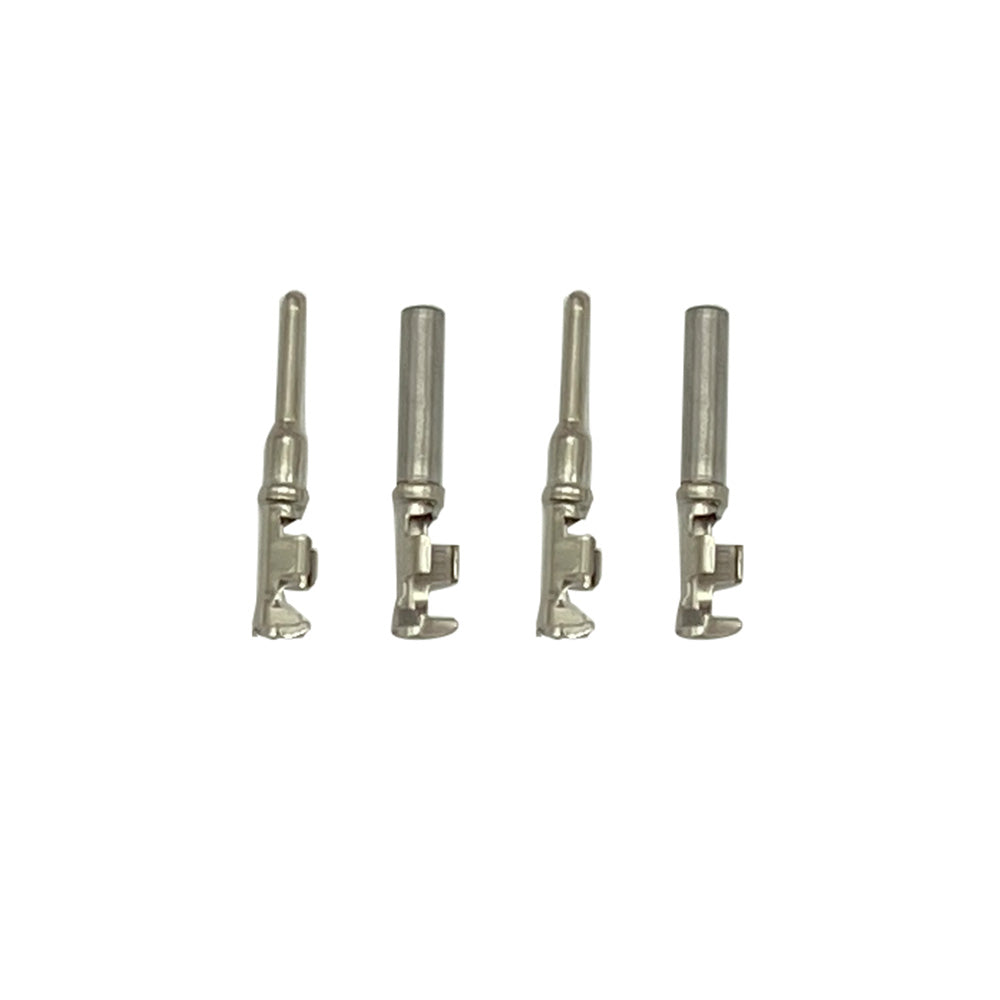

56 x #16 Solid Pin Male contacts 14-20AWG

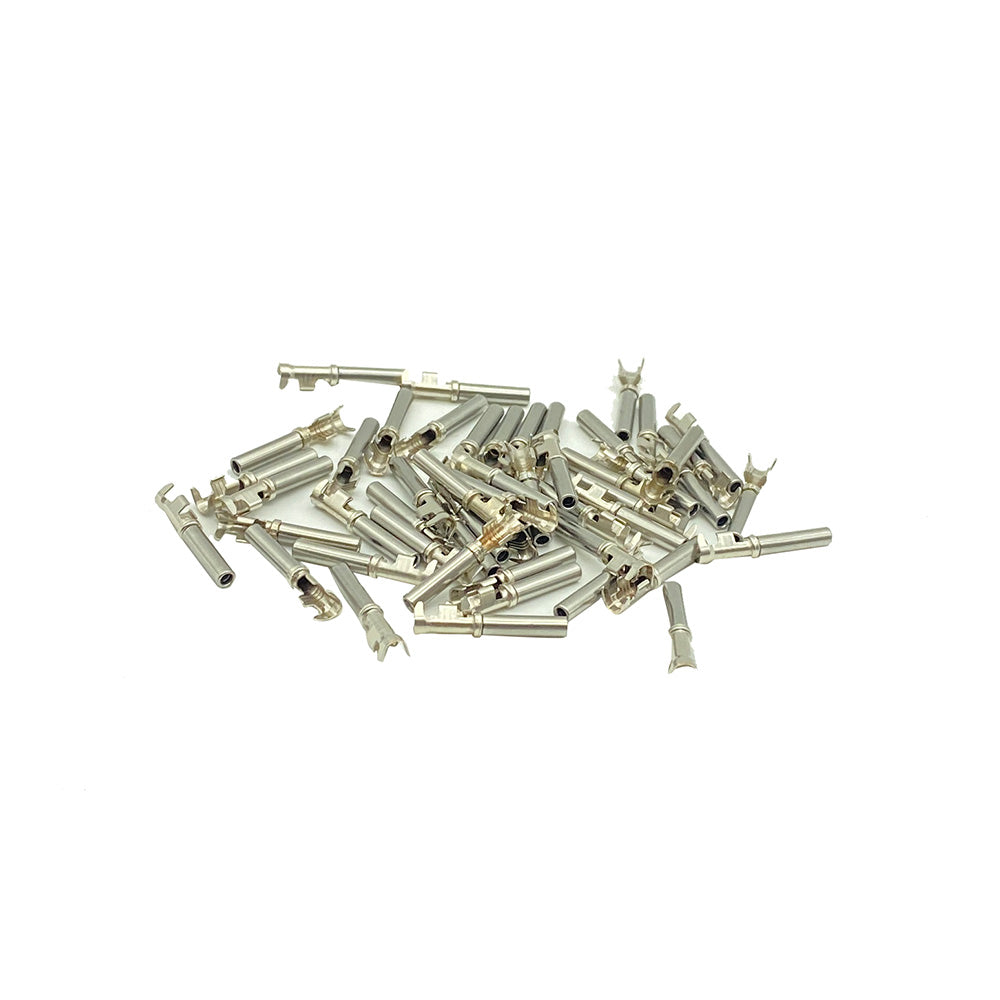

56 x #16 Solid Pin Female contacts 14-20AWG
8 x DT Mounting Clip
1 x Compartment Organizer
