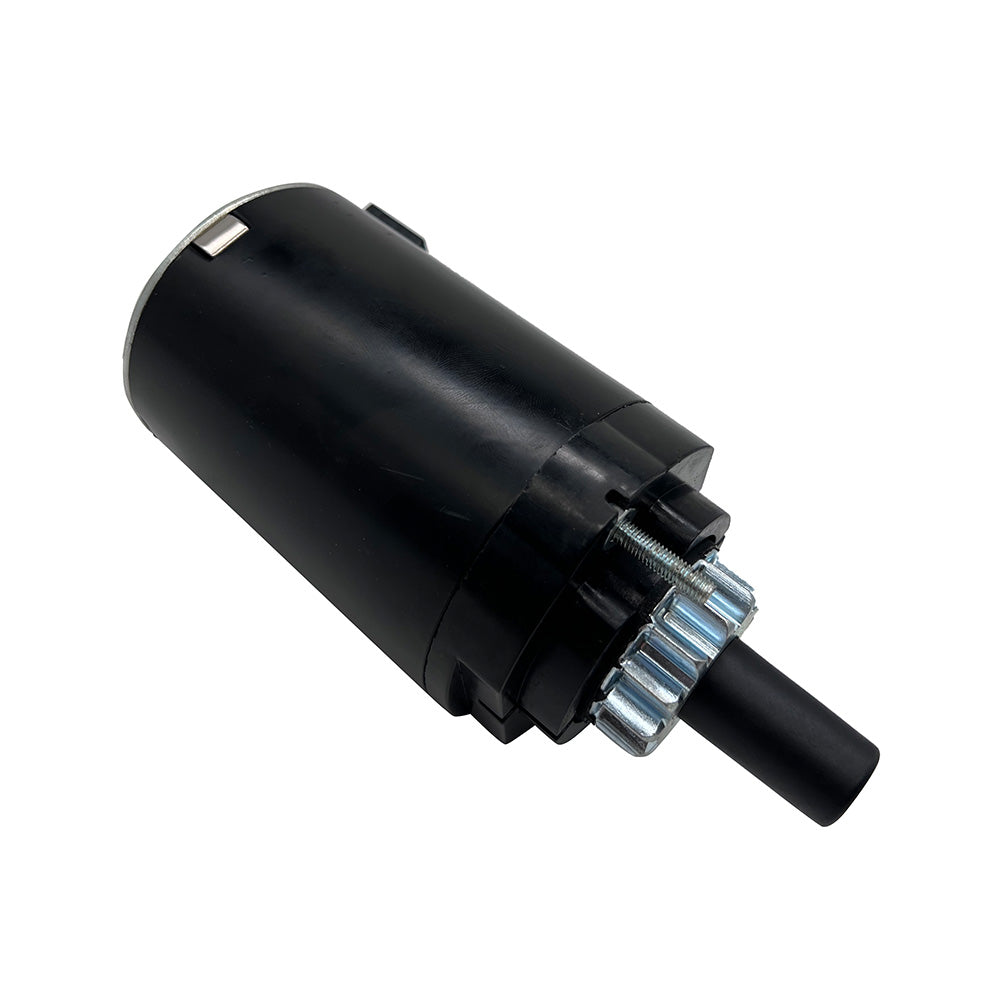

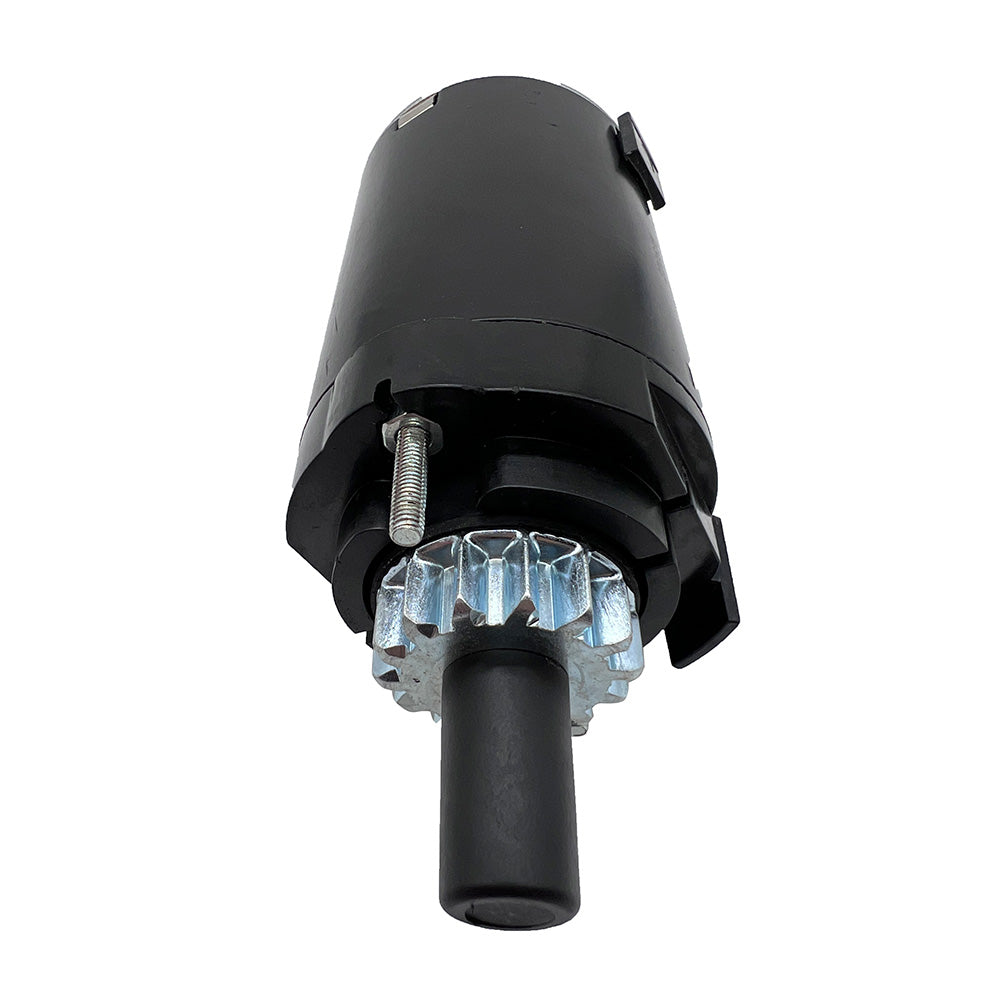

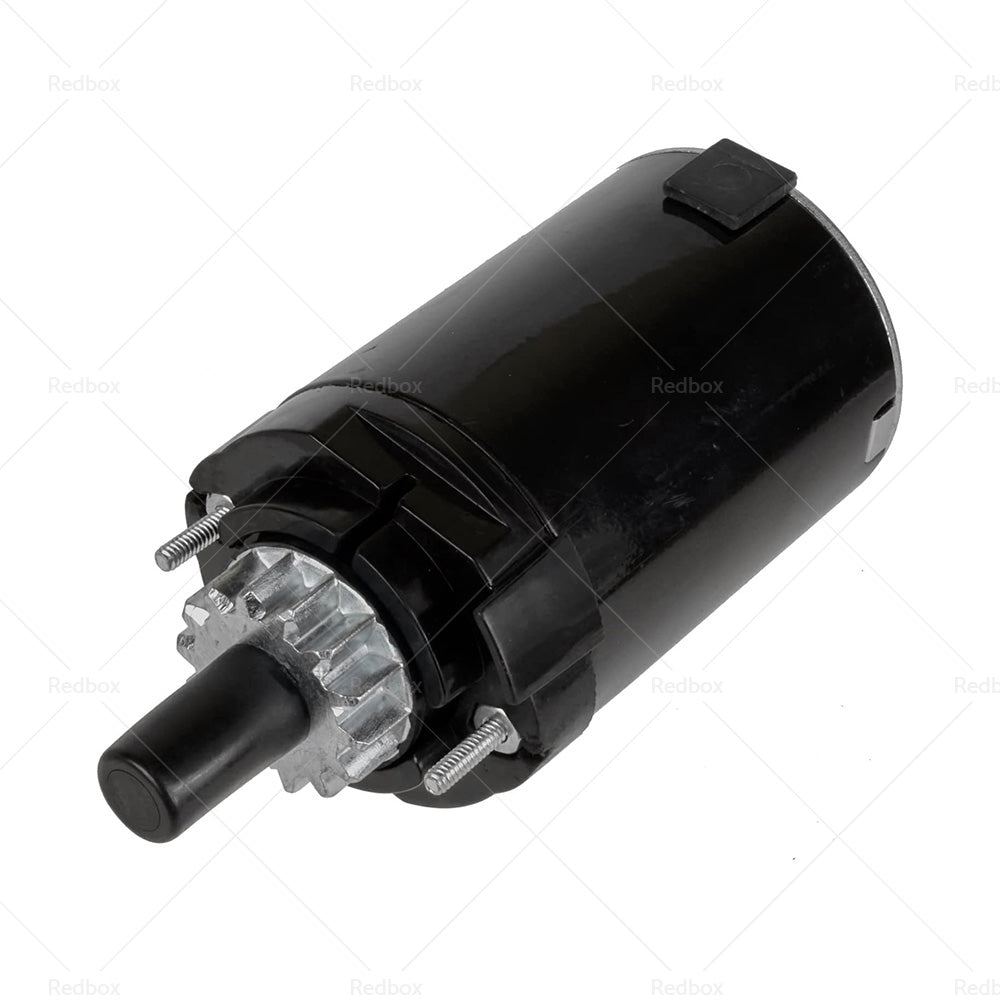

SV540 SV590 Starter Motor 14 Tooth Steel Gear Ride On & Mower H/duty

How to check if tihs starter motor is the one you need ：
-Count the number of drive teeth on your starter motor’s drive gear.
-There should be 14 teeth.
-Check what the drive gear on your old starter motor is made from. If it is steel then this starter is suitable.
-Measure the housing of your starter motor. If it is around 130mm then this starter is suitable.
-Measure the mounting bolt spacing. It should be approx. 68mm.

Specification:
12 Volt

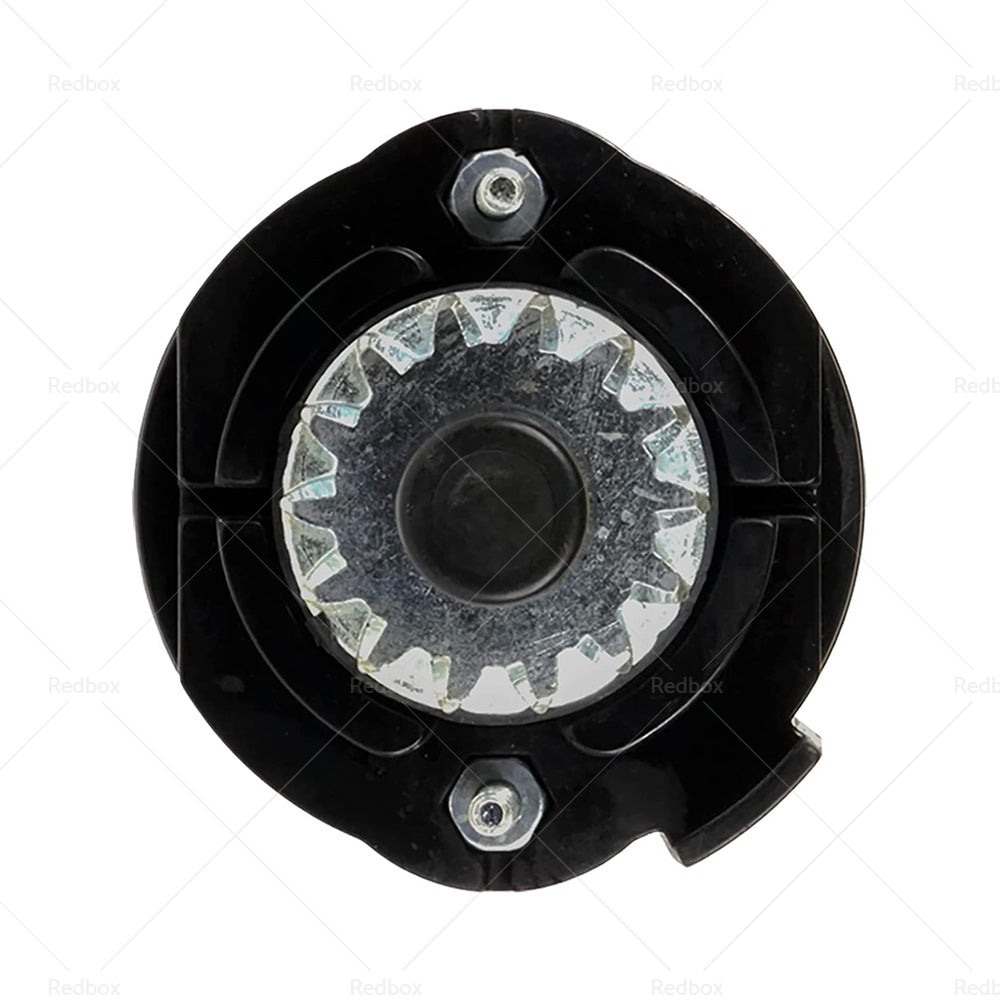

14 Tooth Steel Drive Gear - Counter Clockwise Rotation.

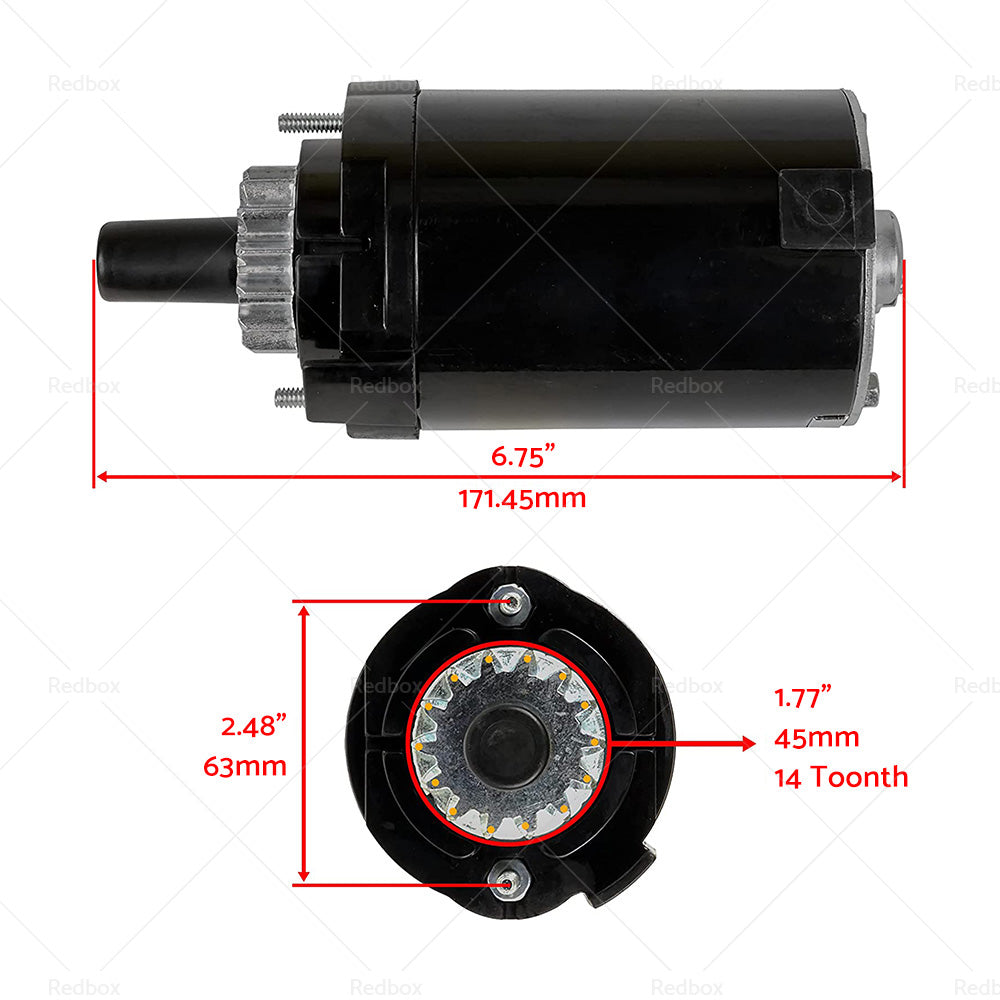

Drive Pinion Dia. 43.6mm / 1.717"
5" (127.1mm) housing
Battery Stud 1/4-20
x2 10-24 External Mounting Studs in DE Housing

Replaces the following OEM numbers:

Suitable For Case/New Holland: K0H2009805S
Suitable For Cub Cadet: KH20-098-05S
Suitable For Kohler: 20-098-01 - 20-098-01S - 20-098-05 - 20-098-05S - 20-098-06 - 20-098-06S - 20-098-08 - 20-098-08S - 20-098-10 - 20-098-10S - 20-098-11 - 20-098-11S - K2009811S
Lester: 5796

Package  Including：

1x starter motor

Suits the following models:
SV470 15 HP
SV470-0004 15 HP
SV470-0005 15 HP
SV470-0006 15 HP
SV470-0011 15 HP
SV470-0104 15 HP
SV470-0105 15 HP
SV470-0123 15 HP
SV470-0213 15 HP
SV470-3213 15 HP
SV471-3211 15 HP
SV530 17 HP
SV530-0007 17 HP
SV530-0008 17 HP
SV530-0016 17 HP
SV530-0017 17 HP
SV530-0025 17 HP
SV530-0034 17 HP
SV530-0213 17 HP
SV530-3213 17 HP
SV530-3224 17 HP
SV530-3225 17 HP
SV540 18 HP
SV540-0004 18 HP
SV540-0009 18 HP
SV540-0011TURFCARE 18 HP
SV540-0024 18 HP
SV540-0025 18 HP
SV540-0026 TURFCARE 18 HP
SV540-0212 18 HP
SV540-0213 18 HP
SV540-3032 KUBOTA 18 HP
SV540-3202 RFI 18 HP
SV540-3210 COX INDUSTRIES 18 HP
SV540-3212 HUSQVARNA 18 HP
SV540-3216 GGP ITALY 18 HP
SV540-3217 GGP SWEDEN 18 HP
SV540-3219 MTD 18 HP
SV540-3220 MTD 18 HP
SV540-3222 HOP 18 HP
SV540-3223 KUBOTA 18 HP
SV540-3225 SIMPLICITY 18 HP
SV540-3226 MTD 18 HP
SV540-3227 MTD 18 HP
SV540-3228 MTD 18 HP
SV540-3230 MTD 18 HP
SV540-3231 SHIVVERS 18 HP
SV540-3232 KUBOTA 18 HP
SV540-3233 KUBOTA 18 HP
SV540-3234 KUBOTA 18 HP
SV541-3200 MARKETING 18 HP
SV541-3210 HUSQVARNA 18 HP
SV541-3212 MTD 18 HP
SV541-3213 KUBOTA 18 HP
SV541-3214 KUBOTA 18 HP
SV541-3216 GGP ITALY 18 HP
SV590-0001 ELECTROLUX HOME PRODUCTS 19 HP
SV590-0002 EHP - SEARS 19 HP (2004)
SV590-0003 MTD 19 HP
SV590-0004 HUSQVARNA 19 HP
SV590-0005 CUB CADET 19 HP
SV590-0006 HUSQVARNA 19 HP
SV590-0007 HUSQVARNA 19 HP
SV590-0008 CUB CADET 19 HP
SV590-0009 EHP 19 HP
SV590-0010 SEARS 19 HP
SV590-0011 MTD 19 HP
SV590-0012 POULAN PRO 19 HP
SV590-0013 MTD 19 HP
SV590-0014 ARIENS 19 HP
SV590-0015 BASIC 19 HP
SV590-0016 MTD 19 HP
SV590-0017 MTD 19 HP
SV590-0018 YARDMAN/GUTBROD 19 HP
SV590-0019 TORO 19 HP
SV590-0020 HUSQVARNA 19 HP
SV590-0021 HUSQVARNA 19 HP
SV590-0022 EXCEL HUSTLER 19 HP
SV590-0023 TORO 19 HP
SV590-0024 MTD 19 HP
SV590-0200 BASIC 19 HP
SV590-0210 HUSQVARNA 19 HP
SV590-0211 EXCEL HUSTLER 19 HP
SV590-0212 TORO 19 HP
SV590-0213 TORO 19 HP
SV590-0218 HOP 19 HP
SV590-0219 MTD 19 HP
SV590-0220 MTD 19 HP
SV590-0221 MTD 19 HP
SV590-0223 MTD 19 HP
SV590-0224 MTD 19 HP
